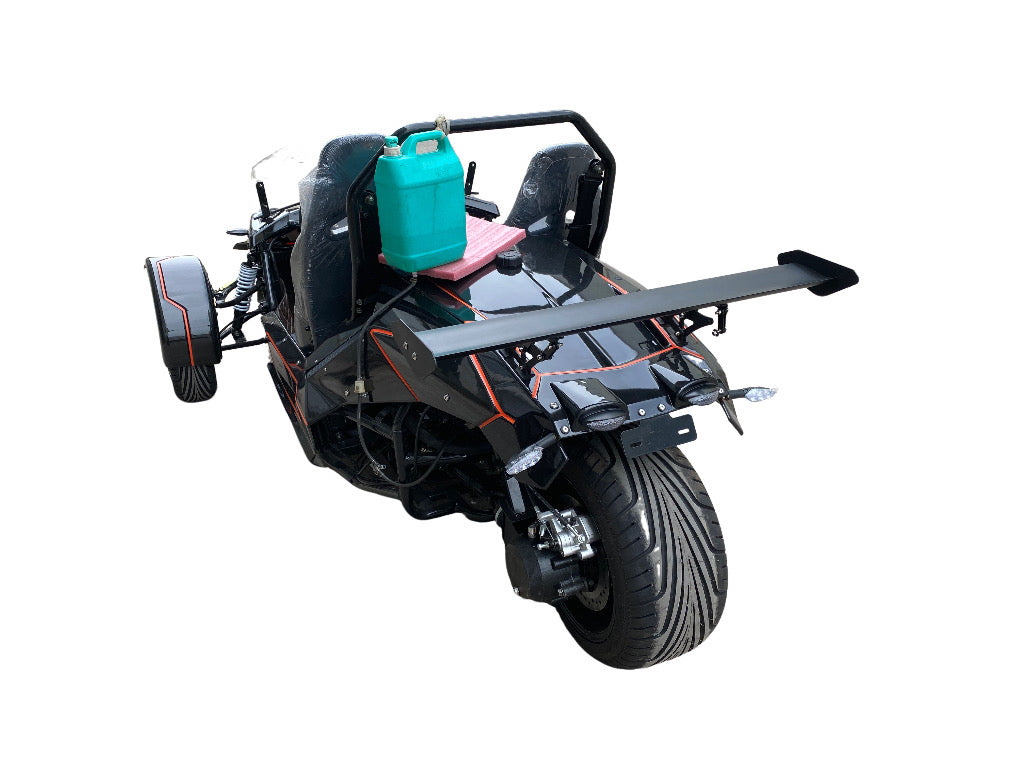

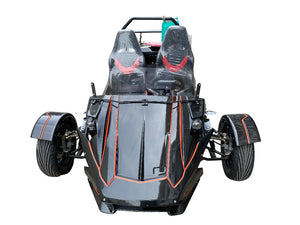

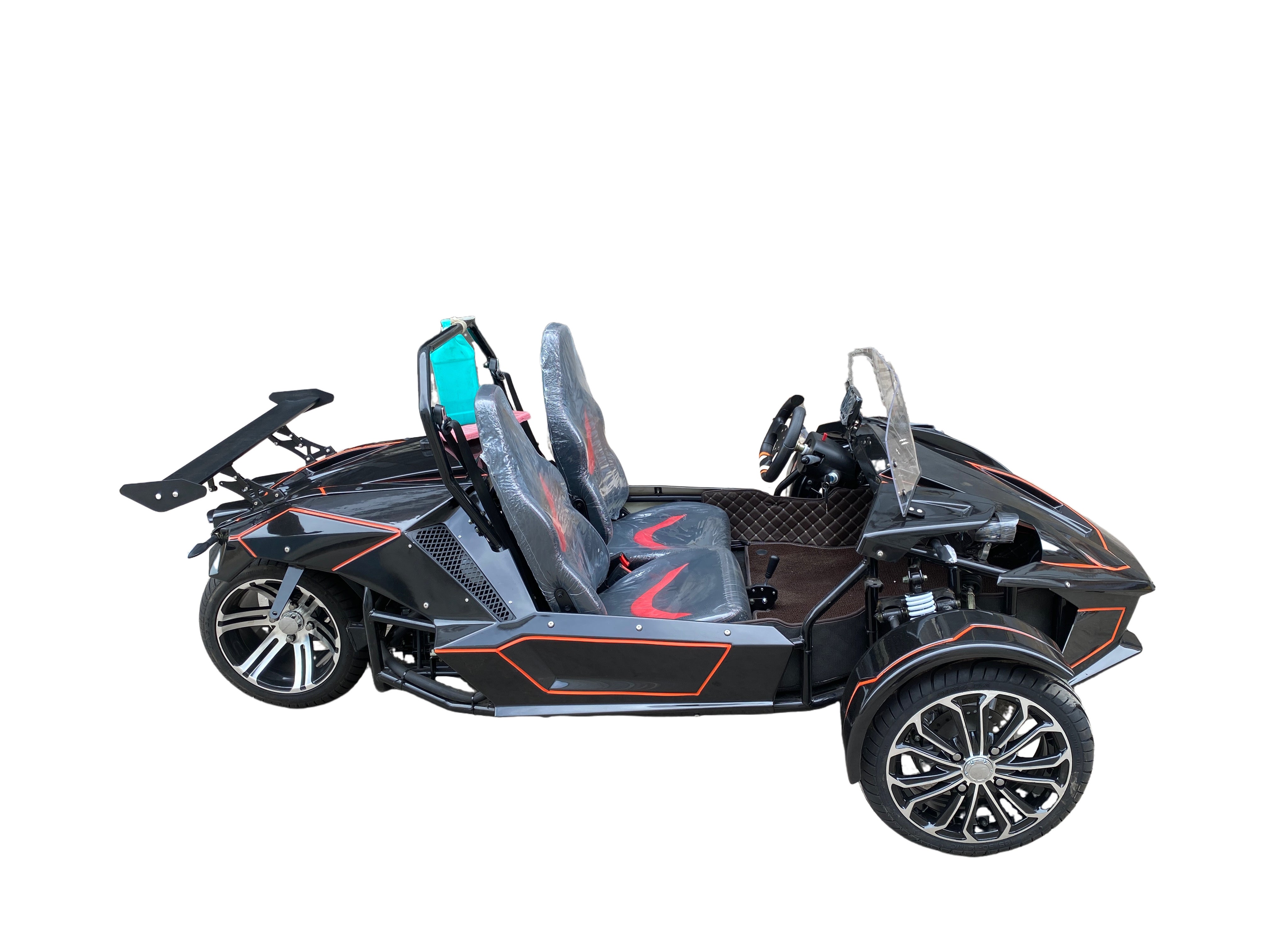

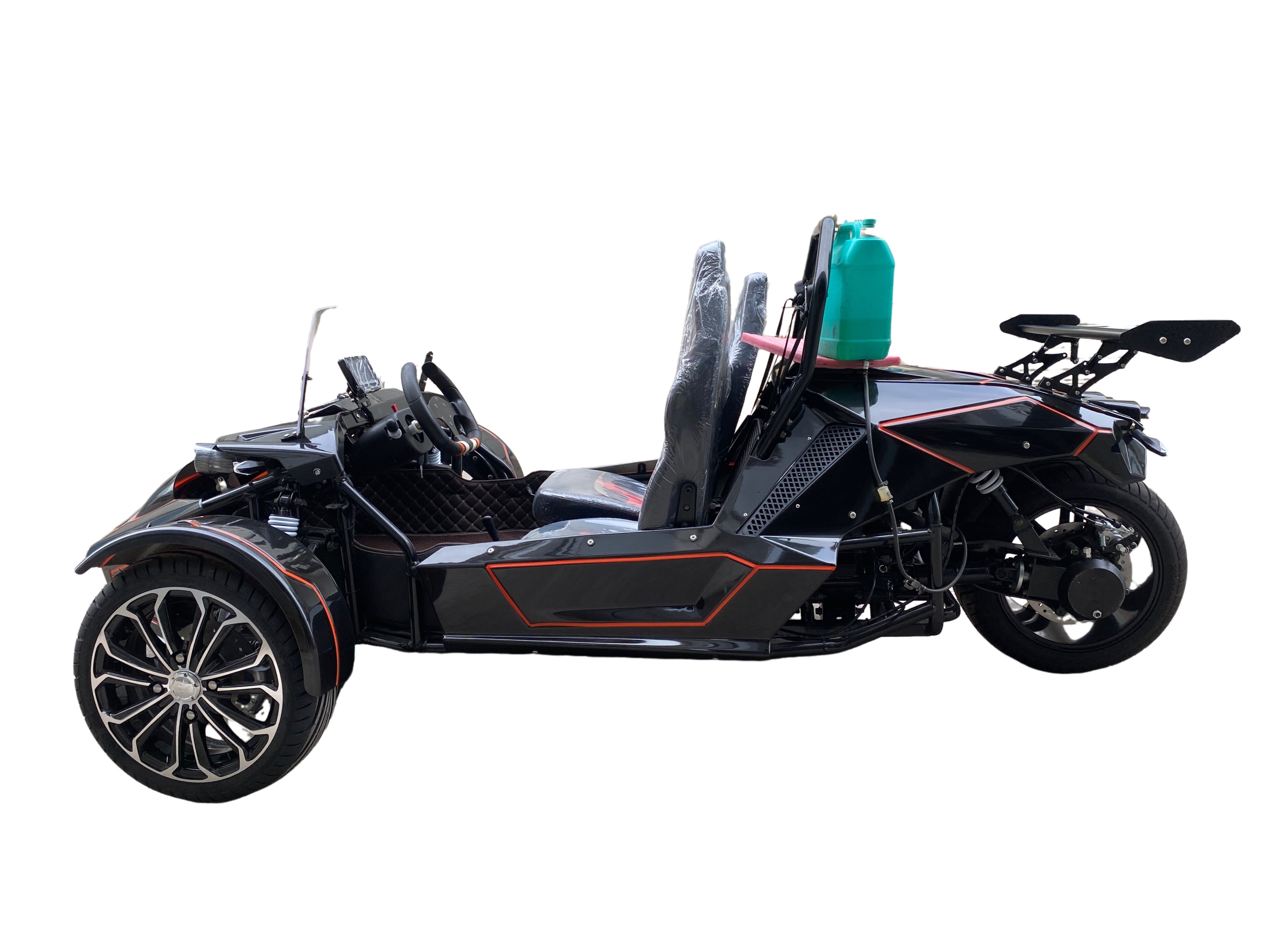

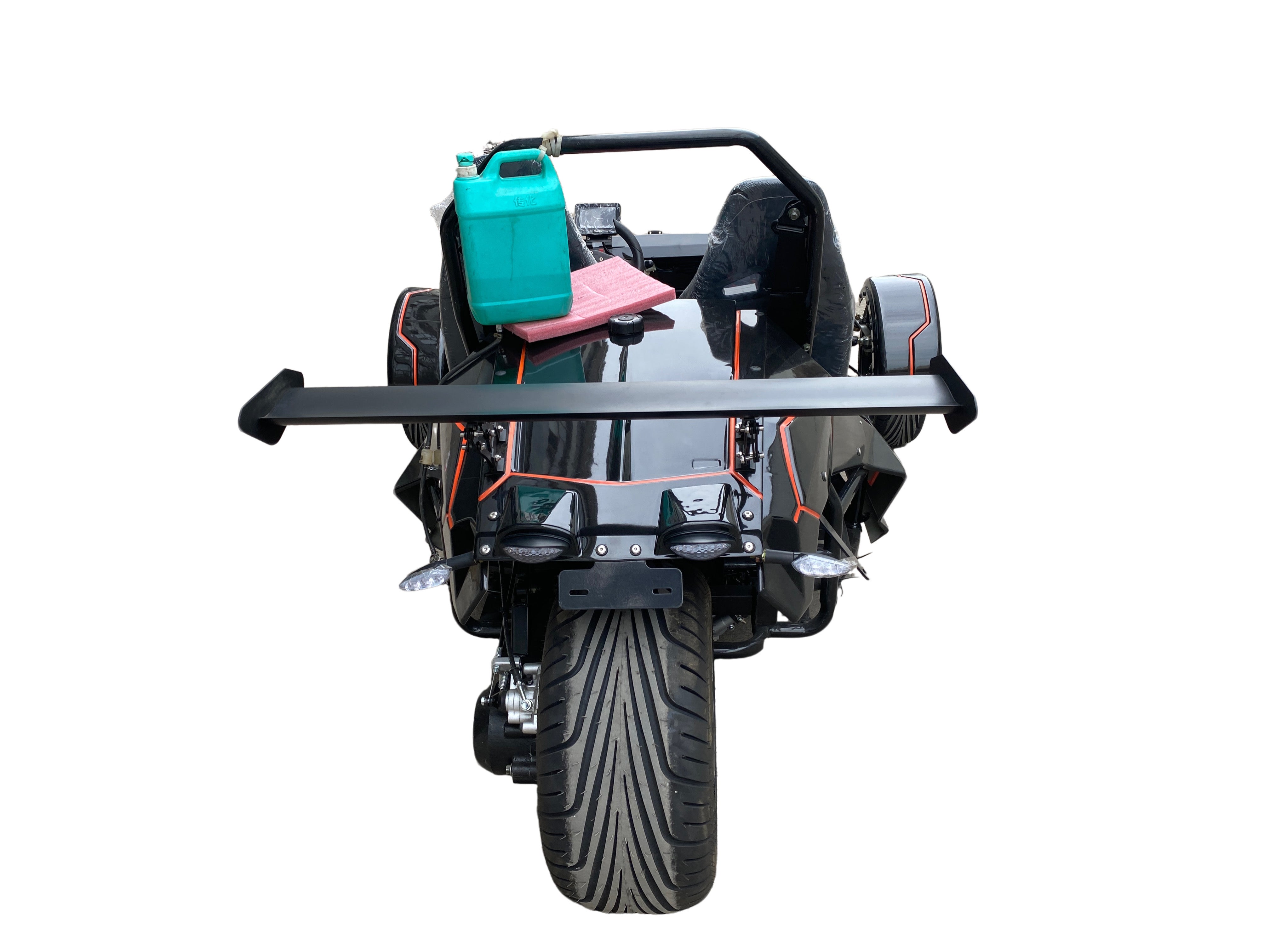

Speedkart ReverseTricycle

POWER
Motor choice: Quanshun wheel hub brushless motor 6000W / 10000W
Controller choice: 350A / 430A intelligent controller, use bluetooth contect to phone
Battery choice: 72V 80AH / 72V 120AH / 72V 150AH
Charging: (100 - 240V input) 3 - 8hours
Transmission: Automatic F - N - R
Drive Train: Differential rear wheel driving

DIMENSIONS
Overall Size (LWH): 2800x1630x770mm
Seat Height: 19mm(seat can be removed)
Wheelbase: 1450mm
Min.ground clearance: 180mm
Dry weight: 500kg
Max. Load: 300KG
Package Size: 2665x1140x730mm
Conveyance: 12PCS/20'GP, 24PCS/40'HQ

CHASSIS
Suspension/Front: Independent double shock absorber
Suspension/Rear: Independent double shock absorber
Brakes: Hydraulic disc (Front + Rear) & handle park brake
Tires: 185/30 - R14 (Front), 295/30 - R14 (Rear)

MAIN PERFORMANCE:
Max.speed: 120km/h
Power comsumption: 8kw.h/100km
Climbing degree: ≤40°
Starting time: ≤5s
Brake distance: 80km/h ≤7m
